當(dāng)前位置：首頁 - 產(chǎn)品目錄

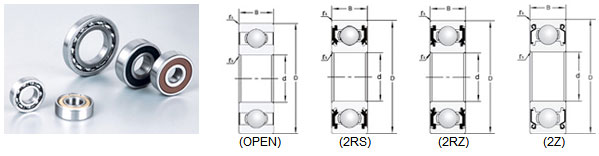

（深溝球軸承）英制 16 系列
軸承型號 外形尺寸(mm) 額定載荷(kN) 重量(kg)

d
mm in.

 D
mm in.		 B
mm in.		 r smin
mm in.		 Cr.0 Cor Mass
1601 4.763 .1875 17.463 .6875 6.350 .2500 0.3 .012 1.511 0.724 0.004
1602 6.350 .2500 17.463 .6875 6.250 .2500 0.3 .012 1.511 0.724 0.006
1603 7.938 .3125 22.225 .8750 7.144 .2812 0.3 .012 2.547 1.342 0.010
1604 9.525 .3750 22.225 .8750 7.144 .2812 0.38 .015 2.547 1.342 0.015
1605 7.938 .3125 23.019 .9062 7.938 .3125 0.3 .012 2.547 1.342 0.012
1606 9.525 .3750 23.019 .9062 7.938 .3125 0.38 .015 2.547 1.342 0.014
1607 11.113 .4375 23.019 .9062 7.938 .3125 0.38 .015 3.556 1.938 0.016
1614 9.525 .3750 28.575 1.1250 9.525　3750 0.64 .025 3.921 2.245 0.035
1615 11.113 .4375 28.575 1.1250 9.525　3750 0.64 .025 3.921 2.245 0.034
1616 12.700 .5000 28.575 1.1250 9.525　3750 0.64 .025 3.921 2.245 0.030
1620 11.113 .4375 34.925 1.3750 11.113 .4375 0.64 .025 5.881 3.471 0.050
1621 12.700 .5000 34.925 1.3750 11.113 .4375 0.64 .025 5.881 3.471 0.048
1622 14.288 .5625 34.925 1.3750 11.113 .4375 0.64 .025 5.881 3.471 0.046
1623 15.875 .6250 34.925 1.3750 11.113 .4375 0.64 .025 5.881 3.471 0.040
1628 15.875 .6250 41.275 1.6250 12.700 .5000 0.64 .025 7.232 4.45 0.072
1630 19.050 .7500 41.275 1.6250 12.700 .5000 0.64 .025 7.232 4.45 0.065
1633 15.875 .6250 44.450 1.7500 12.700 .5000 0.64 .025 7.232 4.45 0.092
1635 19.050 .7500 44.450 1.7500 12.700 .5000 0.64 .025 7.232 4.45 0.085
1638 19.050 .7500 50.800 2.000 14.288 .5625 0.89 .035 10.80 6.95 0.120
1640 22.225 8750 50.800 2.000 14.288 .5625 0.89 .035 10.80 6.95 0.112
1641 25.400 1.000 50.800 2.000 14.288 .5625 0.89 .035 10.80 6.95 0.100
1652 28.575 1.125 63.500 2.500 15.875 .6250 0.89 .035 12.8 8.4 0.210
1654 31.750 1.250 63.500 2.500
